Fortune Laser Portable Mini 50W/100W Pulse Fiber Laser Cleaning Machine

Fortune Laser Portable Mini 50W/100W Pulse Fiber Laser Cleaning Machine

Ultra-small machine size

Easy to carry and operate

Backpackable and portable

Equipped with machine safety lock

Can be used to remove rust, oil and oxide layer


Product Detail

Product Tags

How laser cleaning works?

gggg6

Laser cleaning is mainly to ablate surface substances such as rust, coating and oil on the surface of the product through the instantaneous high temperature corrosion generated by the laser beam on the surface of the product. Laser cleaning machine is a green, energy-saving and high-efficiency industrial weapon that uses a high-energy-density laser beam to irradiate the surface of the workpiece to instantly evaporate or peel off the dirt, rust or coating on the surface, thereby achieving a clean, green, energy-saving and high-efficiency industrial application. Rust removal, removal of oxides, oil stains, oil stains and product residues, restoration and preservation of historical relics, etc.

50W 100w laser rust removal machine features:

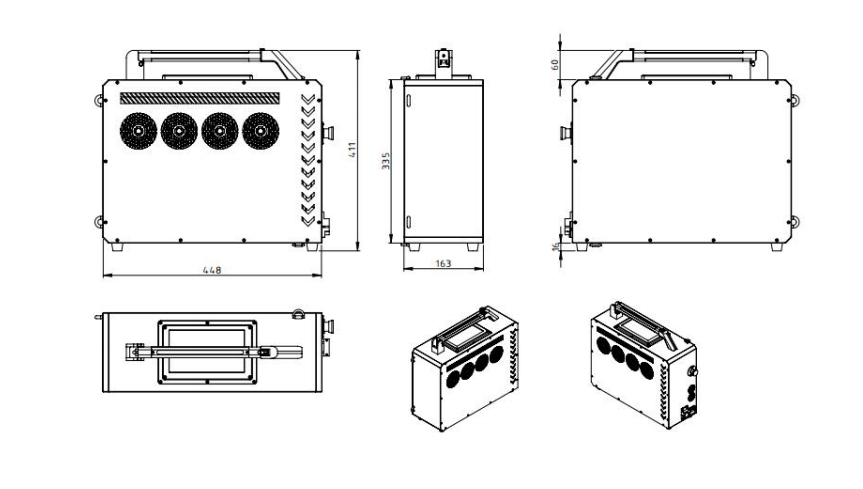

●  Small Size: This handheld portable laser cleaning machine is special designed in hand held usage. The total size is 32*13*28cm ,with the weight is 8kg/12.5kg, equipped with handle,makes it convenience to carry;

●  Small laser rust removal gun, this 50W 100 watt laser rust remover gun size is small and light, which can work long time without any tire. 100w hand-held laser cleaning head is easy to use, lightweight can be used for long hours;

●  Wide range of material applicability, the 100w cleaning laser is flexible and efficient application to a variety of industrial processing scenarios;

●  Low requirements for working environment for the 100w fiber laser cleaning machine, it is safe and stable maintenance-free;

●  100 watt laser cleaner is no material consumption, long service life;

●  You can select 100 watt rust cleaning laser precise location, and precision size to clean.

gggg2
gggg8

Fortune Laser Portable Pulse Laser Cleaner Technical Parameters

Model

FL-C50

FL-C100

Laser Power

50W

100W

Cooling Way

Air Cooling

Air Cooling

Laser Wavelength

1064nm

1064nm

Pulse Energy

0.8mJ

1mJ

Fiber Length

3m

3m

Dimension

32*13*28cm

38*16*28cm

Weight

8kg

12,5kg

Options

 Portable

 Portable

Beam width

10-100mm

10-100mm

Temperature

5-40℃

5-40℃

Voltage

Single Phase AC 220V,50/60HZ

Single Phase AC

220V,50/60HZ

Laser head weight(Kg)

<1.5

<1.5

Laser head scanning range(mm*mm)

100*100

100*100

Laser head focus length(mm)

160、254

160、254

gggg9
gggg7
gggg4

What are the advantages of our portable mini laser cleaning machine?

gggg3

The chassis is equipped with a strap buckle, the strap can be carried on the shoulder, and the hands are freed; External battery, strong mobility;

Hand-held cleaning, exclusive mini laser head, durable and not tired, flexible and convenient;

Excellent data, some parameters are stronger than 200W air-cooled laser cleaning machine, high cleaning efficiency;

The system is stable, easy to control, and has a service life of up to 50,000 hours, which is cost-effective;

High cleaning precision, nano-level controllable, no damage to the substrate;

Green and environmental protection, no secondary pollution

gggg1

Video

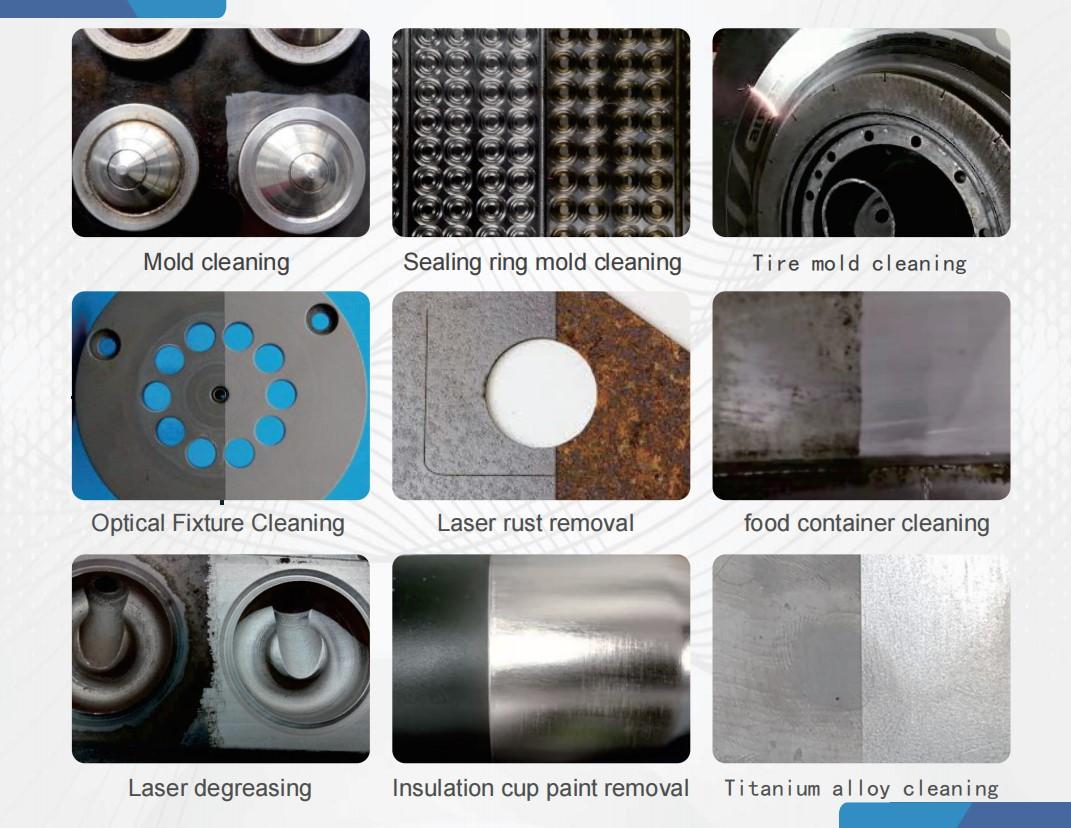

What industries are laser cleaning machines suitable for?

Laser cleaning plays an important role in many fields and is used in automobile manufacturing, semiconductor wafer cleaning, precision parts processing and manufacturing, military equipment cleaning, building exterior wall cleaning, cultural relics protection, circuit board cleaning, precision parts processing and manufacturing, and liquid crystal display cleaning. , removal of chewing gum residue and other aspects can play an important role.

gggg5
