Dual-use Sheet and Tube Laser Cutting Machine

Dual-use Sheet and Tube Laser Cutting Machine

Fortune Laser dual-use sheet and tube fiber laser cutting machine can realize the cutting of two different kinds of materials on the same equipment. It can cut both metal plates and tubes (including square tubes, round tubes, channel steel, angle steel, etc.). One machine with multiple functions, high cost performance, professional pipe cutting control system, high precision, full function, easy to use, simple operation, suitable for comprehensive processing and manufacturing enterprises.


Product Detail

Product Tags

High Rigidity Enhanced Lathe Bed

● 30 days’ strict manufacturing process, high-temperature annealing treatment to eliminate weld seams and bed stress;

● 72 hours vibration aging treatment, high strength, rigidity, tensile strength;

● High purity steel plate with thickness of 10mm, heavy chassis.

Professional Sheet & Tube Cutting System​

● Cypcut Laser Cutting System

● More user-friendly human-machine interaction;

● Simple, economical, practical and convenient;

● Highly integrated and highly intelligent with file reading, design, output and processing control all in one.

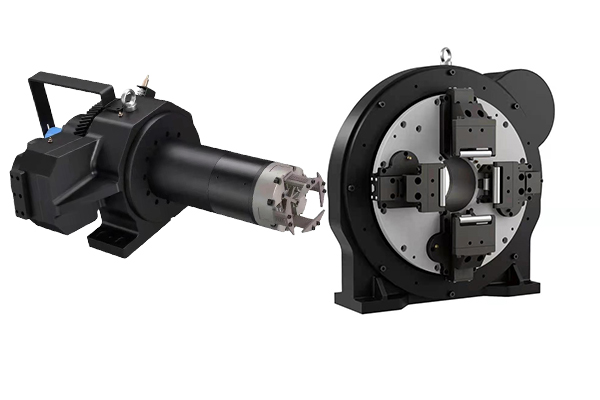

Pneumatic Chuck Design

The front and rear chuck clamping design is convenient for installation, labor-saving, and no wear and tear.Ensure the stability of feeding and cutting accuracy;Automatic adjustment of the center, suitable for various pipes, high chuck rotation speed,can improve processing efficiency.

Auto-focus Laser Cutting Head

● Auto-focusing. Auto and continuous focusing, automatic cutting of plates of different thicknesses and materials, free your hand and improve cutting efficiency;

● Built-in double water-cooling structures can ensure the constant temperature of collimating and focusing components, perfectly solve the problem of heat dissipation.

● Optimized optical configuration, smooth and efficient airflow design, no longer jam due to rust;

S&A Industrial Water Chiller

● Automatically adjust the temperature according to different working environment, no need to change settings parameters;

● Intelligent dual temperature dual control mode to satisfy different needs of a fiber laser device and the optics;

● Multiple alarm protection;

Machine Parameters

Model

FL-ST3015

Working area/ Tube length

3050*1530mm/ 6000mm

X axis stroke

1530mm

Y axis stroke

3050mm

Z axis stroke

315mm

Tube diameter

20-220mm

Accuracy

X, Y axis positioning accuracy

0.05mm



X, Y axis repositioning accuracy

0.03mm

Speed

W axis rotate angle

n*360



W axis max. rotate speed

80rpm/min



X, Y axis max. running speed

80m/min



W axis max. running speed

50m/min



X, Y axis max. accelerated speed

0.8G

Power supply

Phase

3



Nominal voltage

380V



Frequency

50/60Hz

Machine body

Max. working loading

500kg



Body weight

5000kg



Size(L*W*H)

4450*2290*1920mm
 (T: 8400*726mm)

Laser power

1000w/ 1500w/ 2000w/ 3000w

Worktable optional

4000*1500mm/ 6000*1500mm

Tube length optional

3000mm

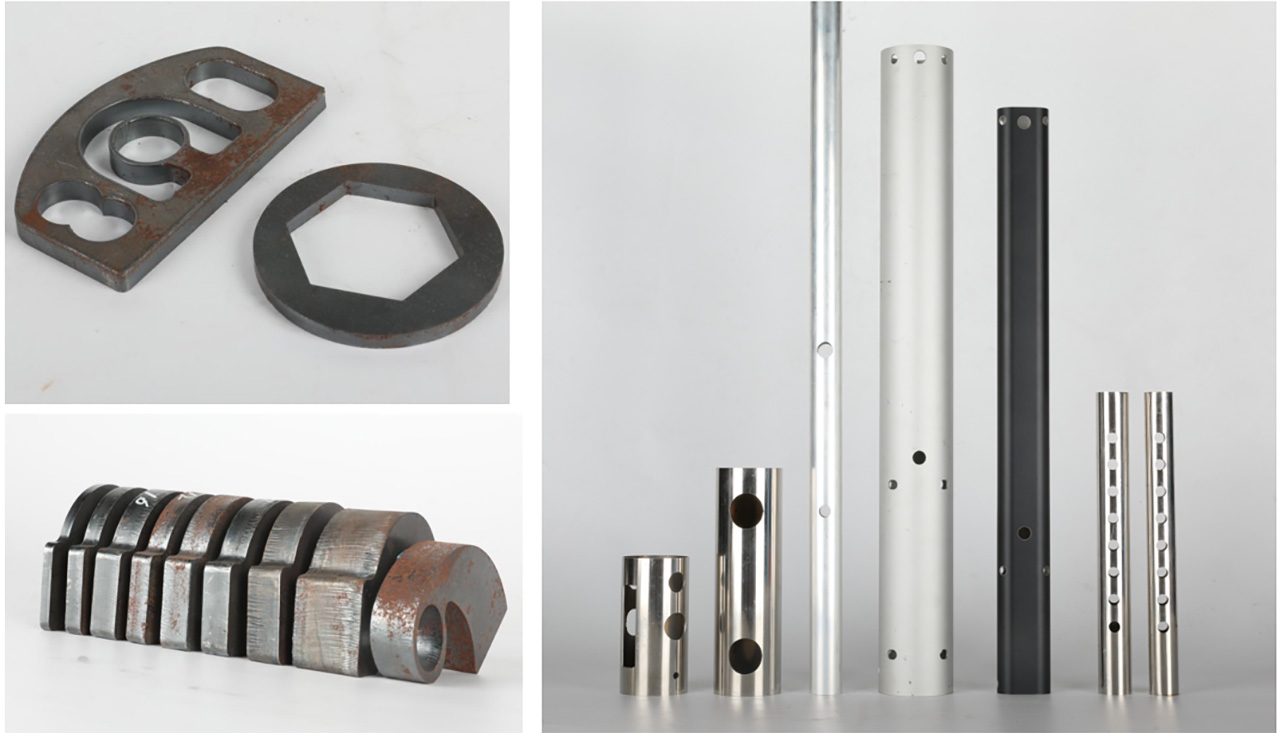

Samples Display
