Handheld 3 in 1 Laser Welding Cleaning Cutting Machine

Handheld 3 in 1 Laser Welding Cleaning Cutting Machine

Fortune Laser Multifunctional 3 in 1 laser welding cleaning cutting machine is a portable all-in-one laser system machine, composed of fiber laser generator, handheld laser gun, water chiller, and 3 in 1 control system, which is used for laser welding, cleaning and handheld cutting. Each handheld laser gun is portable, convenient, and easy to use. Its handheld laser guns can cut and weld metals and clean rust, paint, resin, coatings, oil, and stains.


Product Detail

Product Tags

xrhyfd

3 In 1 Handheld Laser Cutting, Welding, Cleaning Machine Features

1.As a laser cleaner, it is a "green" cleaning method. It does not need to use any chemical agent and cleaning solution. The cleaned waste is basically solid powder. It is small, easy to store and recyclable. It can easily solve the problem of environmental pollution caused by chemical cleaning.
2.As a laser welder, the welding seam is smooth and beautiful, no need to polish, no deformation or welding scar, firm welding of the part. Save time and improve efficiency.
3.As a laser cutter, it is very easy to operate to cut all types of metals.
4.The portable laser gun has a simple handheld structure and is easy to carry. It is equipped with a touch screen, which is convenient to switch parameters during work and simplify the operation. The weight is 0.8kg, which is light to use without fatigue.
5.It adopts professional fiber laser source with lower error rate, low power consumption, maintenance free, and easy to assemble.
6.Industrial constant temperature water cooling chiller is specially designed. The water chiller is equipped with a filter, which has safe, durable, and stable working performance and long service life. Strong & stable water cooling system will ensure the fiber laser source to work perfectly.
7. Portable design: Compact, ergonomic design, with wheels to move freely.

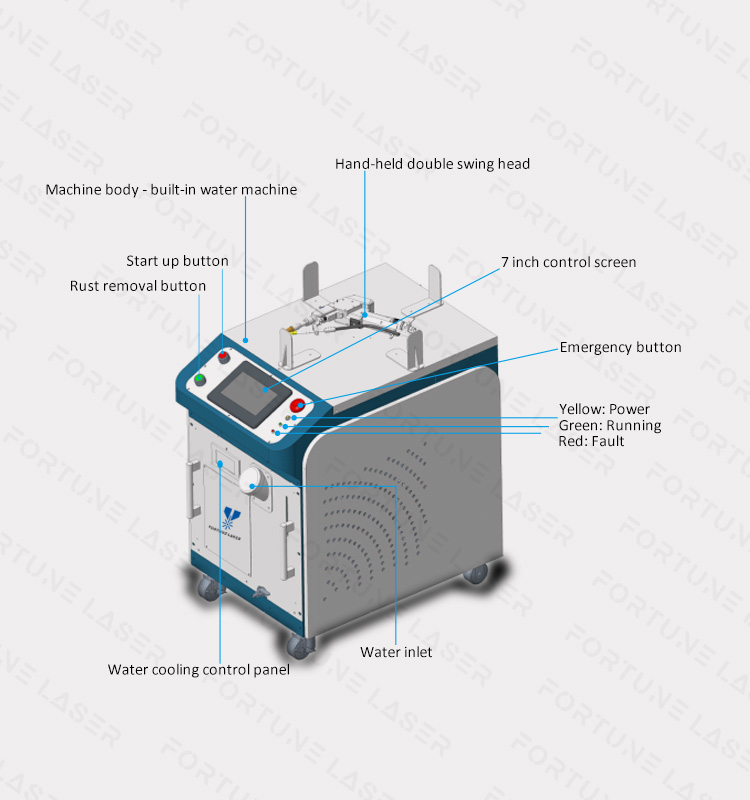

sred

Fortune Laser  Portable 3 in 1 Laser Welding Cleaning Cutting Machine
TECHNICAL SPECIFICATIONS

Laser Power

1000W

1500W

2000W

Laser Source

GW 25um core diameter fiber laser(Raycus/JPT/MAX/IPG optional)

Wavelength(nm)

1064 - 1080

Laser Mode

Laser Welding/ Laser Cutting/ Laser Cleaning

Length of Fiber

10M(customizable)

Working Method

Continuous / Modulation

Laser head

Dual Axis

Interface

QBH

Welding Width

0.2-0.5mm(adjustable)

Laser Preview

Integrated Red Light Preview

Welding gap requirements

≤1.2mm

Welding thickness

0.5-3mm

Welding Speed

0-120mm/s (adjustable)

Collocated focal length

75mm

Focus/Clean Focal Length

F150mm/F500mm

Swing range

0.1—5mm

Swing frequency

0—300Hz

Cooling

Integrated Water Chiller

Language

Chinese/English/Russian/Korean/And other languages as required.

Power Supply

AC 220V, 50Hz/60Hz

AC 380V, 50Hz/60Hz

Parameter Setting

Touch Panel

Welding Materials

Carbon Steel, Stainless Steel, Aluminum, Brass, Alloy etc.

Ambient Temperature

10~40°C

Environmental Humicity

<70% Without Condensation



LASER WELDING PARAMETERS

Material

Laser Power(watt)

Maximum Penetration (mm)

Stainless Steel

1000

0.5-3

Stainless Steel

1500

0.5-4

Carbon Steel

1000

0.5-2.5

Carbon Steel

1500

0.5-3.5

Aluminum Alloy

1000

0.5-2.5

Aluminum Alloy

1500

0.5-3

Galvanized Sheet

1000

0.5-1.2

Galvanized Sheet

1500

0.5-1.8

3 In 1 Handheld Laser Gun

The handheld type laser gun can do welding, cleaning, and cutting with smart controller, easy to use for flexible machining, portable with small size, low cost without consumables. Users can set the parameters via the touch screen on the laser gun, which is very convenient and easy to use.

xhfd

Double pendulum handheld welding head Features:

A.This welding head has strong advantages in stainless steel, aluminum alloy welding, and small and medium power welding applications. It is a cost-effective welding head.
B.The welding head adopts motor-driven X, Y-axis vibrating lens, with multiple swing modes, and swing welding allows the workpiece to have irregular welding, larger gaps and other processing parameters, which can significantly improve the welding quality.
C.The internal structure of the welding head is completely sealed, which can prevent the optical part from being polluted by dust.
D.Optional welding/cutting kits and cleaning kits can truly achieve three functions of welding, cutting and cleaning.
E.The protective lens adopts a drawer structure, which is easy to replace.
F.Can be equipped with various lasers with QBH connectors.
G.Small size, good appearance and feel.
H.A touch screen is optional on the welding head, which can be linked with the platform screen for better man-machine control experience.

laser head fortune laser

Fiber Laser Generator

GW (JPT, Raycus, MAX, RECI and IPG laser generators are optional) with higher photoelectric conversion efficiency, lower error rate, low power consumption, maintenance free, and compact structure.

Built-In Water Chiller Design

It can avoid the shackles of wires to adapt to more venues, and has good dustproof and anti-condensation effects. Smart Control Panel Built-in parameters adjustment range is large, and the one-key startup is simple and easy to use.

3 In 1 Handheld Laser Cleaning, Welding, Cutting Machine Applications

The multipurpose laser machine is used in manufacturing, automotive, kitchenware, shelves, elevators, distribution boxes, ovens, metal furniture, electronics hardware, optical communication, sensor, automobile accessories, porcelain teeth, glasses, solar energy, and precision parts manufacturing.

1.With laser welding gun, it is a portable laser welder to weld aluminum, stainless steel, titanium, gold, silver, copper, nickel, chromium, and more metals or alloys, it can also be applied in a variety of welds between different metals, such as titanium–gold, copper–brass, nickel-copper, titanium–molybdenum and so on.

2.With laser cleaning gun, it is a portable laser cleaner to remove rust, resin, coating, oil, stains, paint, dirt for for surface treatment with hobbyists and industrial manufacturing, it can effectively reduce the machine maintenance cost and improve the industrial cleaning effect.

3.With laser cutting gun, it is one portable handheld laser cutter for all types of metals cutting.
(Only suitable for thin metal plate.)

Three in One Handheld Laser welding cleaning cutting system machine packing info

Professional fiber laser welding cleaning cutting machine manufacturer for metalworking manufacturing industry service business. Laser welder, laser cleaner and laser cutter for sale in Algeria, Armenia, Argentina, Austria, Australia, Azerbaijan, Bangladesh, Belgium, Bulgaria, Bolivia, Brazil, Belarus, Canada, Chile, China, Colombia, Czech, Cyprus, Germany, Denmark, , Ecuador, Estonia, Egypt, Spain, Finland, France, Georgia, Greece, Hungary, Indonesia, Ireland, Israel, India, Italy, Jordan, Japan, Korea, Kuwait, Kazakstan, Lebanon, Latvia, Morocco, Malta, Mexico, Malaysia, Netherlands, Norway, New Zealand, Oman, Peru, Philippines, Poland, Portugal, Paraguay, Qatar, Romania, Russia, Saudi Arabia, Switzerland, Sweden, Singapore, Slovenia, Slovakia, Swaziland, South Africa, Thailand, Tunisia, Turkey, United Kingdom, UAE, USA, Uruguay, Uzbekistan, Venezuela, Vietnam.

The portable laser welders and laser cleaners are more and more popular. Whether you are looking for a welding machine or a cleaning tool for use, or plan to start a welding and cleaning service business, this 3 in 1 laser machine is a very good choice. Please contact us today for more details.
