1000W Pulse Laser Cleaning Machine Description
The FL-C1000 is a new type of high-tech cleaning machine that is easy to set up, control, and automate. This powerful device uses laser cleaning, which is a new technology that removes dirt and coatings from surfaces by using a laser beam to interact with the material. It can remove resin, paint, oil stains, dirt, rust, coatings, and rust layers from surfaces.
Unlike traditional cleaning methods, the FL-C1000 offers several benefits: it doesn't touch the surface, won't damage materials, and cleans precisely while being environmentally friendly. The machine is simple to operate and doesn't need chemicals, cleaning materials, or water, making it perfect for many industrial uses.
Key Features
- Damage-Free Cleaning: Employs non-contact cleaning that does not damage the part's matrix.
-
High Precision: Achieves precise, selective cleaning by position and size.
-
Eco-Friendly: Requires no chemical cleaning liquids or consumables, ensuring safety and environmental protection.
-
Simple Operation: Can be operated as a handheld unit or integrated with a manipulator for automated cleaning.
-
Ergonomic Design: Greatly reduces operating labor intensity.
-
Mobile and Convenient: Features a trolley design with moving wheels for easy transport.
-
Efficient and Stable: Provides high cleaning efficiency to save time and a stable system with minimal maintenance requirements.
Technical Specifications
| Category | Parameter | Specification |
|
Operating Environment
|
Content | FL-C1000 |
| Supply Voltage |
Single phase 220V±10%, 50/60Hz AC
|
|
| Power Consumption | ≤6000W | |
| Working Environment Temperature | 0℃～40℃ | |
| Working Environment Humidity | ≤80% | |
|
Optical Parameters
|
Average Laser Power | ≥1000W |
| Power Instability | <5% | |
| Laser Working Mode | Pulse | |
| Pulse Width | 30-500ns | |
| Maximum Monopulse Energy | 15mJ-50mJ | |
| Power Regulation Range (%) |
10-100 (Gradient Adjustable)
|
|
| Repeat Frequency (kHz) |
1-4000 (Gradient Adjustable)
|
|
| Fiber Length | 10M | |
| Cooling Mode | Water Cooling | |
|

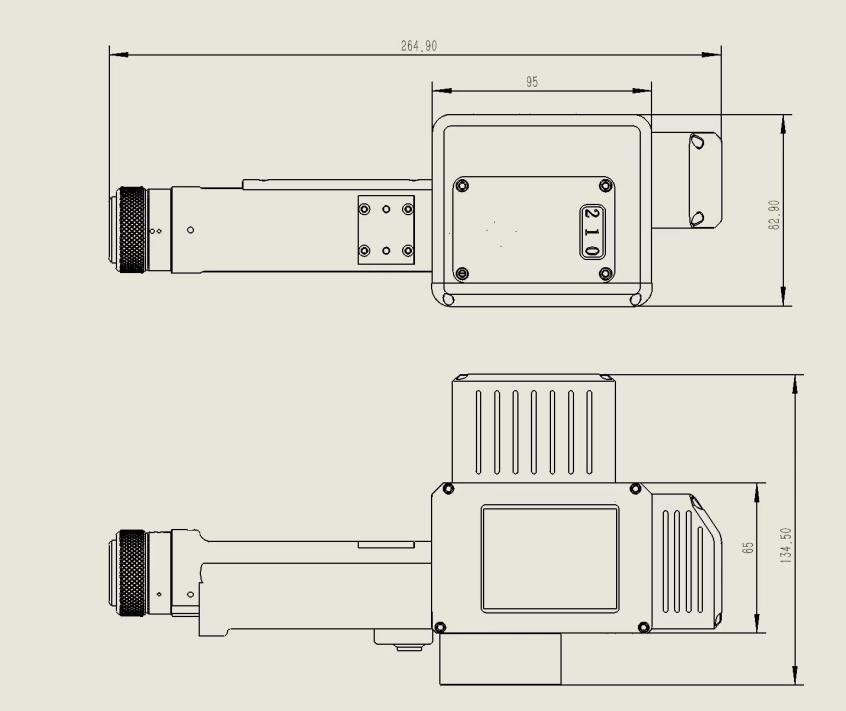

Cleaning Head Parameters
|
Scan Range (Length * Width) |
0mm~250 mm, continuously adjustable; supporting 9 scanning modes
|
| Scanning Frequency |
The maximum is not less than 300Hz
|
|
| Focal Length of Focusing Mirror (mm) |
300mm (Optional 150mm/200mm/250mm/500mm/600mm)
|
|
|
Mechanical Parameters
|

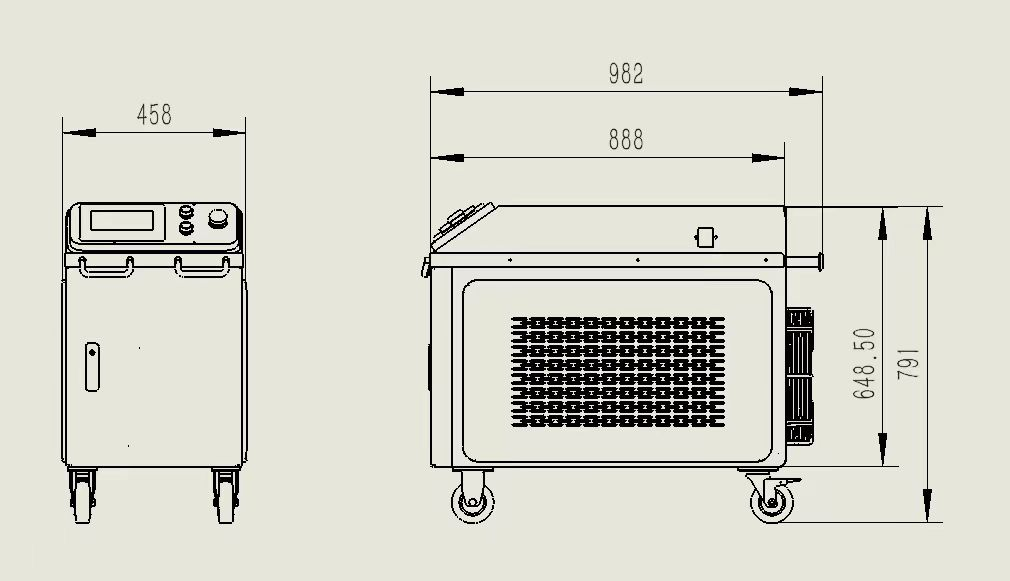

Machine Size (LWH) |
About 990mm * 458mm * 791mm
|
| Size After Packing (LWH) |
About 1200mm * 650mm * 1050mm
|
|
| Machine Weight | About 135Kg | |
| Weight After Packing | About 165Kg |

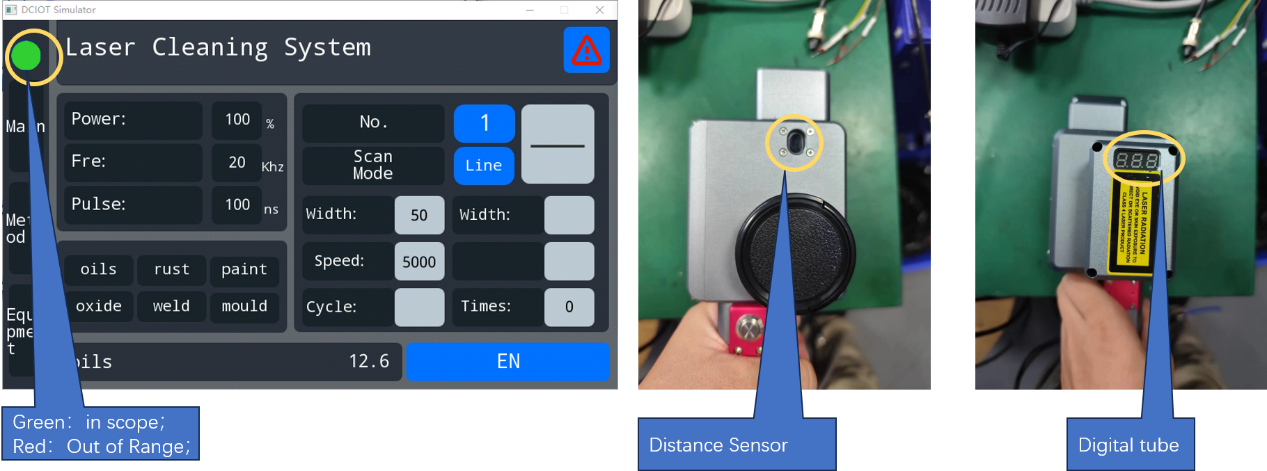

Operating System
Size
