Discountable price Laser Soldering Machine - Continuous Laser Cleaning Machine Rust Removal Machine – Fortune Detail:

Product description

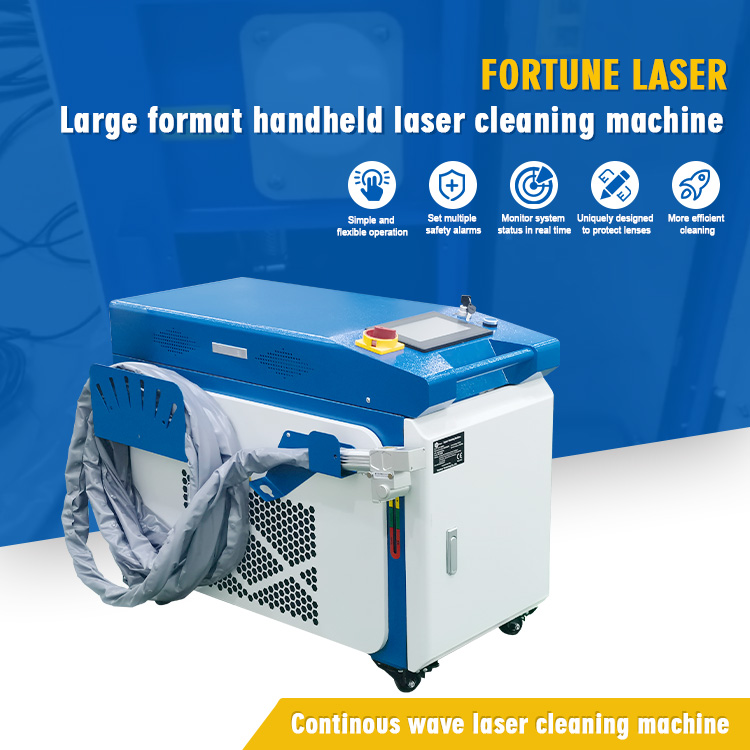

Laser cleaning machine, also known as laser cleaner or laser cleaning system, is an advanced equipment that uses high-energy density laser beam to achieve efficient, fine and deep cleaning. It is favored for its excellent cleaning efficiency and environmental performance. This equipment is designed for high-performance surface treatment. Combined with modern laser technology, it can quickly and accurately remove rust, paint, oxides, dirt and other surface contaminants while ensuring that the surface of the substrate is not damaged and maintains its original integrity and finish.

The design of the laser cleaning machine is not only compact and lightweight, but also highly portable, which is convenient for users to operate easily and can achieve dead-angle cleaning even on complex surfaces or hard-to-reach areas. The equipment has shown excellent application value in many fields such as manufacturing, automotive industry, shipbuilding, aerospace, and electronic manufacturing.

Machine Features

● Basic features of products: independently developed control system and structural design, adapt to various cleaning requirements within 3000W, set multiple safety alarms, simple and flexible operation.

● The whole machine is more stable: all parameters can be seen, and the state of the whole machine is monitored in real time to avoid problems in advance, facilitate troubleshooting and troubleshooting, and ensure the stable operation of the hand-held cleaning head.

● Unique air knife design: the unique exit “air knife” design, can greatly increase the light port protection gas flow rate, better prevent lens pollution.

● Controlled parameters and high repeatability. Stabilize the mechanical structure and lens state, only to meet the laser power stability, the process parameters must be repeated, greatly improve the efficiency.

Model	FL-C1500	FL-C2000			FL-C3000
Laser source	Fiber Laser
Laser Power	1500W	2000W			3000W
Fiber cable Length	10M
Wavelength	1070nm
Frequency	50-5000 Hz
Cleaning Head	Single Axis
Clean speed	≤60 M²/Hour	≤70 M²/Hour			≤70 M²/Hour
Cooling	Water cooling
Dimension	985469cm		985469cm	11154106cm
Packing size	1085897cm		1085897cm	12058121cm
Net Weight	120KGS		120KGS	260KGS
Gross Weight	140KGS		140KGS	300KGS
Optional	Manual
Temperature	10-40 ℃
Power	< 7KW		< 9KW	< 13KW
Voltage	Single Phase 220V, 50/60HZ			380V Three phase

Machine cleaning ability for reference

Power(W)	Material	Cleaning speed	Effective beam/cleaning range	Cleaning depth	Cleaning efficiency(cube/H)
1500	floating rust	50mm/s	150mm	20um	15
	paint			100um	6
	rust			120um	4
2000	floating rust	50mm/s	150mm	20um	20
	paint			100um	8
	rust			120um	5
3000	floating rust	50mm/s	150mm	20um	30
	paint			100um	14
	rust			120um	9

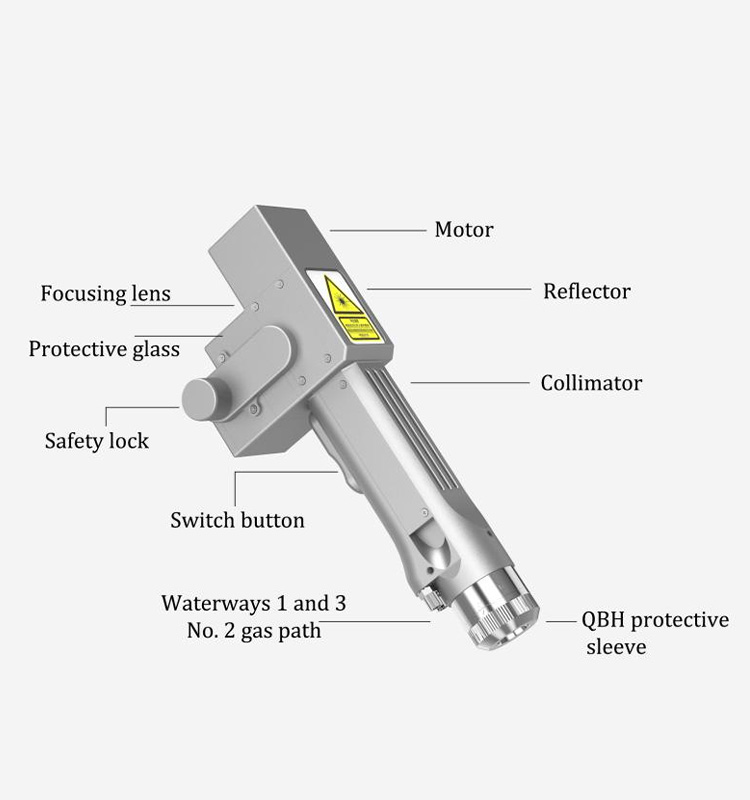

Laser cleaning head details

Service voltage (V)Put the environment	service voltage (V)Put the environment
Working environment	Flat, no vibration and impact
Working environment temperature:(°C)	Working environment
Working environment humidity is (%)	＜70
Cooling-down method	Hydro cooling
Applicable wavelength	1064nm(+10nm)
Applicable power	≤3000W
Alignment	D16-F60
Focus	D20*T3.5-(F400/F600/F800)
Reflex	20×15.2xT1.6
Protection mirror specifications	D30*T5
Maximum air pressure support	15Bar
Scan Width-Wash	F400-0~150mm
	F600-0~225mm
	F800-0~300mm
Weight	0.7kg

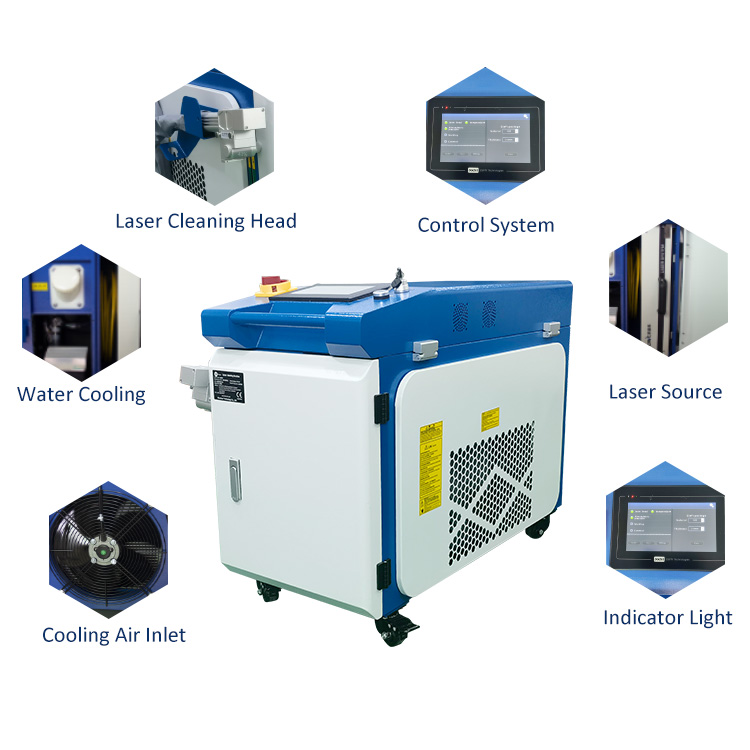

Product detail pictures:
